MTL surge protection MTL SSP32X With Good Price In Stock

Introduce of  MTL SSP32X

The self-healing surge protector (SSP) from Eaton adds AC fault withstand capability and current limiting protection to our traditional hybrid surge technology.

The single loop design is packaged in the well-known IOP/SLP enclosure giving the customer a wider range of performance offering when choosing this family of products. The product eliminates the most common cause of SPD failure (continuous overvoltage/over current conditions) while adding current limiting protection to the circuit.

The use of Surge Protection Devices on communication lines has increased significantly over the last number of years. However, if the communication lines are subjected to induced AC power or AC powercross, the surge protector can pose possible safety hazards. In these circumstances, the surge protector will respond and draw AC current. The magnitude of current could be large enough to represent a fire risk to the surge protector itself or the thin-gauge UTP (unshielded twisted pair) wiring.

The SSP range incorporates circuitry to mitigate the hazards of induced AC or AC power-cross up to 240Vrms. The SSP stops the flow of current in milli seconds to prevent surge protector and wiring damage. Once the AC power is removed, the SSP will cool down and automatically begins normal operation again.

The SSP range takes our proven hybrid surge circuit and its performance characteristics and adds another layer of protection.

Should the signal loop be subjected to surges which will not operate the Gas Discharge Tube (GDT), yet operate the other surge protection elements, the additional network will immediately protect these

elements by elevating to high resistance. This will stop current flowing through the device and damaging the surge protection elements, while protecting the loop equipment from being subjected to these

sustained over voltages.

The SSP range also provides overcurrent protection to the wiring and the load. Should a sustained current of 500mA, or greater, be present, the SSP will stop the current flow, thus providing additional

protection to the load and the wiring.

Feature of MTL SSP32X

• Withstands AC fault crossover voltages

• Protects against attenuated surges

• Full voltage range 7/16/32/55/75/200

• Resets automatically after removal of fault

• ATEX and IECEx certified intrinsically safe surge protection

• Extension of the IOP/SLP range

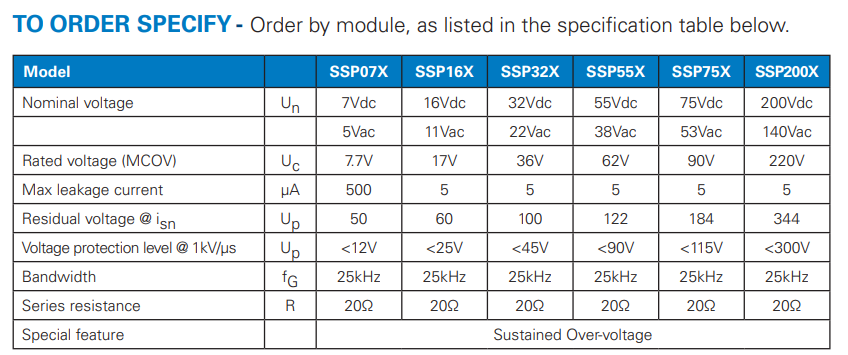

MTL SSP07X
MTL SSP16X
MTL SSP32X
MTL SSP55X
MTL SSP75X
MTL SSP200Xb
