100% Brand New Rockwell Automation/Allen-Bradley 1769-OB16 CompactLogix 16 Pt 24VDC D/O Module With Good Price In Stock
Description: The 1769-OB16 is a CompactLogix Discrete output module which operate at a voltage category of 24VDC at a frequency of 47 to 63 Hz. This module has Sixteen (16) outputs in a single group. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.
Technical Specifications for 1769-OB16
| Technical Specifications - 1769-OB16 | |
| Attribute | 1769-OB16 |
| Outputs | 16 (16 points/group) |
| Voltage category | 24V DC source |
| Operating voltage range | 20.4…26.4V DC |
| Output delay, on | 0.1 ms |
| Output delay, off | 1.0 ms |
| Current draw @ 5.1V | 200 mA |
| Heat dissipation, max | 2.11 W |
| Off-state leakage current, max(1) | 1.0 mA @ 26.4V DC |
| On-state current, min | 1.0 mA @ 26.4V DC |
| On-state voltage drop, max 1.0V DC @ 1 A | 0.5 A @ 60 °C (140 °F) |
| Current per point, max | 0.5 A @ 60 °C (140 °F) |
| 1.0 A @ 30 °C (86 °F) | |
| Current per module | max 4.0 A @ 60 °C (140 °F) |
| 8.0 A @ 30 °C (86 °F) | |
| Surge current(2) 2.0 A for 10 ms, repeatable every 2 s | 2.0 A for 10 ms, repeatable every 2 s |
| Isolation voltage | Verified by one of these dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus |
| 75V DC working voltage (IEC Class II reinforced insulation) | |
| Weight, approx 280 g (0.61 lb) | 280 g (0.61 lb) |
| Dimensions (HxWxD) | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) |
| Height with mounting tabs 138 mm (5.43 in.) | |
| Slot width | 1 |
| Module location | DIN rail or panel mount |
| Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |

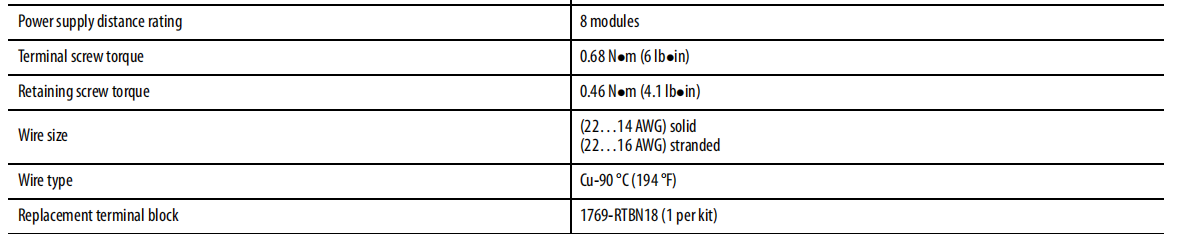

| Power supply distance rating | 8 modules |
| Terminal screw torque | 0.68 Nm (6 lbin) |
| Retaining screw torque | 0.46 Nm (4.1 lbin) |
| Wire size | (22…14 AWG) solid |
| (22…16 AWG) stranded | |
| Wire type | Cu-90 °C (194 °F) |
| Replacement terminal block | 1769-RTBN18 (1 per kit) |
About 1769-OB16
The 1769-OB16 has a 1.0V (max) drop voltage (on-state) at a 1.0mA, and with a 1.0 Ampere at 30 deg. Celsius (86 deg. Fahrenheit) and a 0.5 Ampere at 60 deg. Celsius (140 deg. Fahrenheit) current per point (max). The 1769-OB16 also has an 8.0 A at 30 deg. Celsius (86 deg. Fahrenheit) and a 4.0 A at 60 deg. Celsius (140 deg. Fahrenheit) current per module (max), and a current of 2.0 A for 10ms repeatable every 2 s (surge). It is fitted with IEC Class 2 reinforced insulation, which guards against voltage as high as 75 volts DC. It has 8 modules, a single slot width, and can be mounted on a DIN rail or a panel mount. The 1769-OB16 module has dimensions of 4.65 x 1.38 x 3.43 in. (118 x 35 x 87 mm), and a weight of 0.61 lb (280 g).
The 1769-OB16 is a MicroLogix 1500 and 1769 CompactLogix controller compatible module. This electronic module is a Sixteen (16) channel 24VDC discrete output module. This module has a single group of outputs typically used to energize electrical loads operating with 24VDC voltage.
This module may also be used to energize AC loads via interposing function. With interposing function, relays are used wherein the output module energizes the relay coil. AC voltage, such as 120 / 240VAC is terminated across the relay’s contacts to allow passage of AC voltage to the connected electrical load.
This module is a single slot module which may be directly installed to the 1769 CompactLogix assembly or MicroLogix 1500 controller. If installed to a CompactLogix controller, the power supply distance rating of 8 modules must be observed. This means any installation of this module must be not greater that 8 modules away from the power supply. If installed with a MicroLogix 1500 controller, the module is installed beside the MocroLogix base module and connects to the backplane via a provided ribbon cable.
This module is compatible for use with any 1769 CompactLogix controller and 1769 CompactLogix Power supplies such as 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4. This module uses a terminal block with part number 1769-RTBN18. This terminal block is shipped along with the module. When wiring the module, use recommended wire sizes of 22-14 AWG for solid wire and 22-16 AWG for stranded wire.
This module is configured using RSLogix 500 programming software if used with MicroLogix 1500 and RSLogix 5000 and Studio 5000 Logix designer if used with 1769 CompactLogix controller.
FAQ for 1769-OB16
What is the weight of the 1769-OB16?
The 1769-OB16 weighs 0.61 lb or 280 g.
What is the power supply distance rating for the 1769-OB16?
The power supply distance rating for the 1769-OB16 is 8 modules.
Does the 1769-OB16 have a replacement terminal block?
Yes, the 1769-OB16 has a replacement terminal block. The part number is 1769-RTBN18.
Does the 1769-OB16 have a replacement door?
Yes, the 1769-OB16 has a replacement door. The part number is 1769-RD.
The 1769 Compact I/O™ modules can be used in these applications:
• With a 1769 CompactLogix™ controller
• For expansion I/O in a MicroLogix™ 1500 controller assembly
• In an assembly with a 1769-ADN DeviceNet adapter
• In an assembly with a 1769-AENTR Ethernet adapter.
Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply.
Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a movable bus connector.
