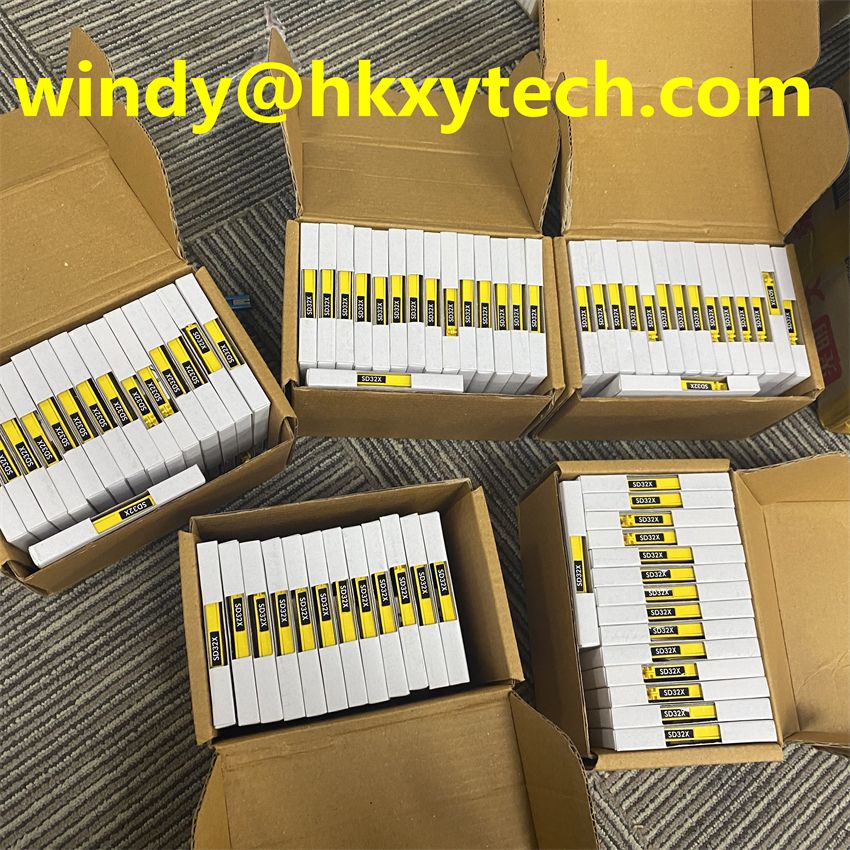

New arrived of MTL SD32X | MTL Surge Protection Device
Overview of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
• Range of ATEX Certified intrinsically safe surge protectors
• Ultra-slim space-saving design; easy installation
• Multistage hybrid protection circuitry – 20kA maximum surge current
• Range of voltage ratings – to suit all process I/O applications
• High bandwidth, low resistance, RTD, PSTN and 3-wire transmitter versions available
• 10 year product warranty
Description of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
The SD32X is a Surge Protective Device, ultra-slim user-friendly device for protecting electronic equipment and systems against surges on signal and I/O cabling and the SLP Series provides 20kA power surge protection for process control, equipment systems and distribution panels. Designed for high bandwidth, low resistance applications RTD, public switch telephone network (PSTN) and 3-wire transmitter versions available in SD series.
MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
The SD range is a series of surge protection devices combine unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks.
The exceptionally high packing densities are the consequence of an ultra slim ‘footprint’ for individual modules which can thus ‘double-up’ as feedback terminals. Each module provides full hybrid surge protection for 2 and 3 wire loop protection.
Modules with a comprehensive range of voltage ratings cover all process related signals such as RTDs, THCs, 4 to 20mA loops,telemetry outstations, shut-down systems and fire and gas detectors.
Optional ‘loop disconnect’, is a feature which allows commissioning and maintenance to be carried out without removal of the surge protection device. This facility is provided by the SD07, SD16, SD32 and SD55 units. In addition, a third connection on the field and safe side of the protector is provided in order to terminate screens safely.
MTL SD range of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
Ultra-slim user-friendly devices for protecting electronic equipment and systems against surges on signal and I/O cabling.
The MTL SD range is a series of surge protection devices combining unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks. The exceptionally high packing densities are the consequence of an ultra slim ‘footprint’ for individual modules which can thus ‘double-up’ as feedback terminals. Each module provides full hybrid surge protection for 2 and 3 wire loop protection.
MTL SDX of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
SDX units, available in 7V, 16V, 32V and 55V versions (SD07X, SD16X, SD32X and SD55X respectively) are suitable for a wide range of applications including THCs, 4-20mA loops, shut-down systems and fire and gas detectors.
MTL SD of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
In addition to the many beneficial features offered by SDX devices, the SD variants fuse/disconnect package provides both fused protection against fault currents and a convenient method of isolating field circuitry from protected circuitry without needing additional disconnect terminals. Also provided is a third connection on the field and safe side of the protector in order to terminate screens safely to earth.
MTL SDR of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
The MTL SDR range has been specially designed to meet the requirements for high speed data links with an extremely high bandwidth. SDR units are available in a range of voltage variants enabling a wide range of communication systems to be protected e.g. RS232, RS422, RS485, Bus powered systems etc. These devices are classed as simple apparatus and can therefore be used in hazardous areas without affecting the certification of the circuit.
MTL SD32T3,SDRTD,SDR3 of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
This range of SD surge protectors offer excellent levels of protection over all three wires in conjunction with minimal footprint requirements. This is the most compact 3-wire surge protector on the market.
SD32T3 is a three terminal SPD for 3-wire transmitters or sensors
SDRTD is designed specifically for Resistance Temperature Detectors
SDR3 is a three terminal SPD for high bandwidth applications
Specification of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
Physical of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
Mount DIN Rail
Technical of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
Clamping Voltage 32 V
Leakage Current 5 µA
Max Forward Surge Current (Ifsm) 400 mA
Max Operating Temperature 75 °C
Max Surge Current 10 kA
Min Operating Temperature -30 °C
Output Current 400 mA
Resistance 2.2 Ω
Response Time 10 ns
Voltage Rating 32 V
Voltage Rating (DC) 32 V
Dimensions of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
Depth 109.6 mm
Height 99 mm
Length 7 mm
Width 7 mm
Ordering Models of MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
SD07 SD16 SD32 SD55 SD07R SD16R SD32R SD55R SD07X SD16X SD32X SD55X SD32T3 SD07R3 SD16R3 SD32R3 SD55R3 SDRTD SDPSTN SD150X SD275X
SD07 SD16 SD32 SD55 SD07X SD16X SD32X SD55X SD150X SD275X SD07R SD16R SD32R SD55R SD07R3 SD16R3 SD32R3 SD55R3 SDRTD SD32T3 SDPSTN SLP07D SLP16D SLP32D MA15/D/1/SI MA15/D/2/SI MA15/D/1TT/SI MA15/D/2TT/L MA30/D/1/SI MA30/D/2/SI MA30/D/3/SI MA05/D/1 MA05/D/2 MA10/D/1 MA10/D/2 MA05/SC/1 MA05/SC/2 MA10/SC/1 MA10/SC/2 MA05/I/1 MA05/I/2 MA10/I/1 MA10/I/2
MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
TP48-N TP48-N-NDI TP48-I TP48-I-NDI TP48-G TP48-G-NDI TP48-3-N-NDI TP48-3-I-NDI TP48-3-G-NDI TP48-3-N TP48-3-I TP48-3-G TP48-4-N-NDI TP48-4-I-NDI TP48-4-G-NDI TP48-4-N TP48-4-I TP48-4-G ICC201-I1-O1 ICC201-I1-O2 ICC201-I2-O1 ICC201-I2-O2 ICC201-I2-O2 ICC211-I1-O2 ICC211-I2-O1 ICC211-I2-O2 ICC212 ICC221 ICC222 ICC241-T3 ICC241-T1 ICC241-T2 ICC301-I9-O1 ICC312 ICC316-T2 ICC317-T2-LFD ICC352-T1 ICC352-T2 ICC441 ICC446
MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
MTL5011B MTL5012 MTL5012S MTL5014 MTL5015 MTL5017 MTL5018 MTL5018AC MTL5021 MTL5021-SR MTL5022 MTL5022-SR MTL5023 MTL5024 MTL5025 MTL5025-SR MTL5031 MTL5032 MTL5040 MTL5041 MTL5042 MTL5042-SR MTL5043 MTL5044 MTL5045 MTL5046 MTL5049 MTL5051 MTL5061 MTL5061-SR MTL5074 MTL5074-RTD MTL5081 MTL5082 MTL5099 MTL5314 MTL5344 MTL5349 MTL5531-111LI MTL5531-115LI MTL5991 MPA5500 MTL5501-SR MTL5510 MTL5510B MTL5511 MTL5513 MTL5514 MTL5514D MTL5516C MTL5517 MTL5521 MTL5522 MTL5523 MTL5523V MTL5523VL MTL5524 MTL5525 MTL5526 MTL5531 MTL5532 MTL5532-R MTL5533 MTL5541 MTL5541A MTL5541AS MTL5541S MTL5544 MTL5544A MTL5544AS MTL5544D MTL5544S MTL5546 MTL5546Y MTL5549 MTL5549Y MTL5561 MTL5573 MTL5575 MTL5575-R MTL5576-RTD MTL5576-THC MTL5581 MTL5582 MTL5599
MTL5510 MTL5510B MTL5511 MTL5513 MTL5514 MTL5514D MTL5516C MTL5517 MTL5521 MTL5522 MTL5523 MTL5523V MTL5523VL MTL5524 MTL5525 MTL5526 MTL5531 MTL5532 MTL5533 MTL5541 MTL5541AS MTL5541S MTL5544 MTL5544A MTL5544AS MTL5544D MTL5544S MTL5546 MTL5546Y MTL5549 MTL5549Y MTL5561 MTL5573 MTL5575 MTL5576-RTD MTL5576-THC MTL5581 MTL5582 MTL5599 MTL5314 MTL5011B MTL5014 MTL5022 MTL5024 MTL5031 MTL5042 MTL5042 MTL5046 MTL5074 MTL5082
MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
MTL4501-SR MTL4504 MTL4510 MTL4510B MTL4511 MTL4513 MTL4514 MTL4516 MTL4516C MTL4517 MTL4521 MTL4521L MTL4523 MTL4523R MTL4523L MTL4524 MTL4524S MTL4525 MTL4526 MTL4531 MTL4532 MTL4533 MTL4541 MTL4541A MTL4541AS MTL4541B MTL4541P MTL4541S MTL4544 MTL4544A MTL4544AS MTL4544B MTL4544D MTL4544S MTL4546 MTL4546C MTL4546Y MTL4549 MTL4549C MTL4549Y MTL4561 MTL4575 MTL4576-RTD MTL4576-THC MTL4599 MTL4599N
MTL SD32X Surge Protection MTL SD32X Line Protectors DIN Rail Mounting In Stock
MTL7706+ MTL7707+ MTL7707P+ MTL7710+ MTL7715+ MTL7715P+ MTL7722+ MTL7728+ MTL7728- MTL7728AC MTL7728P+ MTL7729P+ MTL7741 MTL7742 MTL7743 MTL7744 MTL7745 MTL7755AC MTL7756AC MTL7758- MTL7758+ MTL7760AC MTL7761AC MTL7761PAC MTL7764+ MTL7764AC MTL7765AC MTL7766AC MTL7766PAC MTL7767+ MTL7778AC MTL7779+ MTL7787+ MTL7787- MTL7787P+ MTL7788+ MTL7788R+ MTL7789+ MTL7796- MTL7796+ MTL7798 MTL7799 MTL705+ MTL706+ MTL707+ MTL707P+ MTL708+ MTL710+ MTL710AC MTL710P+ MTL715+ MTL715P+ MTL722+ MTL722P+ MTL728+ MTL728AC MTL728P+ MTL729P+ MTL751AC MTL755AC MTL758+ MTL760AC MTL761AC MTL761PAC MTL764+ MTL764AC MTL765AC MTL766AC MTL766PAC MTL767+ MTL768+ MTL772AC MTL778AC MTL779+ MTL786+ MTL787+ MTL787S+ MTL787SP+ MTL788+ MTL788R+ MTL791 MTL796+ MTL799
